使用JHipster构建单一的Web应用程序

准备

Oracle网站安装Java 8。

Node.js网站安装Node.js(LTS 64位版本,不支持非LTS版本)。

如使用docker,请从docker网站安装docker。

安装JHipster

使用yarn安装,在终端运行:

yarn add global generator-jhipster

使用npm安装,在终端运行:

npm install -g generator-jhipster

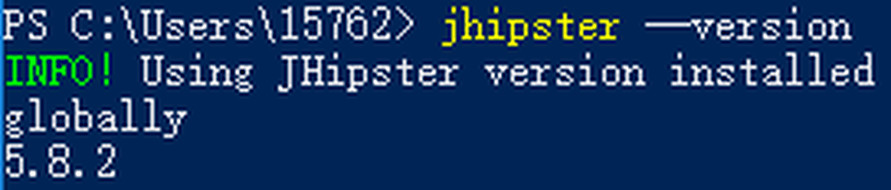

等待安装完毕,执行jhipster --version ,你将会看到版本信息。

生成应用

在此之前,可以先准备一个github repository(仓库),之后将在这个仓库上创建许多Git Branchs(分支)。

可以查看本博客关于Git简要说明

准备工作区

为工作区创建一个新文件夹,导航到该文件夹。

mkdir my-test-app
cd my-test-app

为应用创建一个文件夹,导航到该文件夹。

mkdir my-shop
cd my-shop

在开始前执行jhipster --version确保准备完成,最好使用最新版本的工具,执行yarn global upgrade generator-jhipsternpm update -g generator-jhipster更新版本。

使用JHipster生成代码

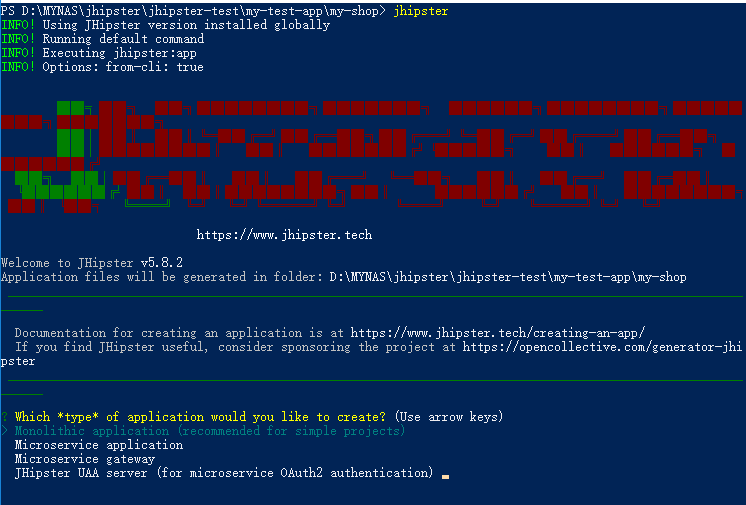

生成代码只需要在应用文件夹下终端执行jhipster命令,终端将输出。

JHipster将询问一些问题,以获得有关所需的不同选项输入。

? (1/19) Which *type* of application would you like to create? (Use arrow keys) //选择创建的应用类型
> Monolithic application (recommended for simple projects) //综合应用
 Microservice application //微服务应用
 Microservice gateway //微服务网关
 [BETA] JHipster UAA server (for microservice OAuth2 authentication) //微服务OAuth2的身份认证服务

服务器选择

? (2/19) What is the base name of your application? (shop) //服务名

? (3/19) What is your default Java package name? (com.mycompany.app) //默认包名

? (4/19) ? Do you want to use the JHipster Registry to configure, monitor and scale your application? (Use arrow keys) //微服务注册中心和统一配置中心,只有在微服务架构时才会使用
> No
  Yes

? (5/19) Which *type* of authentication would you like to use? (Use arrow keys) //选择认证方式
> JWT authentication (stateless, with a token) //使用JSON Web Token
  OAuth 2.0 / OIDC Authentication (stateful, works with Keycloak and Okta) //使用OpenID连接服务,类似于Keycloak或者Okta
  HTTP Session Authentication (stateful, default Spring Security mechanism) //经典的基于session认证的机制
  Authentication with JHipster UAA server // 此种方式必须提前生成JHipster UAA Server (Q1的选项),它是基于OAuth2的验证服务

? (6/19) Which *type* of database would you like to use? (Use arrow keys) //选择数据库类型
> SQL (H2, MySQL, MariaDB, PostgreSQL, Oracle, MSSQL) //关系型数据库
  MongoDB
  Couchbase
  Cassandra

? (7/19) Which *production* database would you like to use? //生产数据库
  MySQL
  MariaDB
> PostgreSQL
  Oracle (Please follow our documentation to use the Oracle proprietary driver)
  Microsoft SQL Server

? (8/19) Which *development* database would you like to use? //开发数据库
  H2 with disk-based persistence //数据存储在磁盘的H2
  H2 with in-memory persistence //内存H2(服务关闭数据丢失)
> PostgreSQL

? (9/19) Do you want to use the Spring cache abstraction?
  Yes, with the Ehcache implementation (local cache, for a single node) //本地缓存方案 ehcache
> Yes, with the Hazelcast implementation (distributed cache, for multiple nodes) //集群缓存方案,多节点缓存,适合多微服务的分布式环境
  [BETA] Yes, with the Infinispan implementation (hybrid cache, for multiple nodes)
  Yes, with Memcached (distributed cache) - Warning, when using an SQL database, this will disable the Hib
ernate 2nd level cache!
  No - Warning, when using an SQL database, this will disable the Hibernate 2nd level cache!

? (10/19) Do you want to use Hibernate 2nd level cache? (Y/n) y  //Hibernate 二级缓存

? (11/19) Would you like to use Maven or Gradle for building the backend? //选择后台构建系统
  Maven //更成熟,稳定,用户群体更大
> Gradle //更灵活,易于扩展,支持maven一键转Gradle

? (12/19) Which other technologies would you like to use?  //可选技术
 ( ) Search engine using Elasticsearch //集成搜索开源搜索引擎 ElasticSearch
>(*) WebSockets using Spring Websocket //使用Spring WebSocket、SocketJS和Stomp协议添加WebSocket支持
 ( ) Asynchronous messages using Apache Kafka //使用Kafka添加对异步队列的支持
 ( ) API first development using OpenAPI-generator //添加Swagger codegen对API优先开发的支持

客户端选择

? (13/19) Which *Framework* would you like to use for the client? (Use arrow keys) //客户端框架
> Angular
  React

? (14/19) Would you like to enable *SASS* stylesheet preprocessor? (Y/n) y //SASS支持

国际化选择

? (15/19) Would you like to enable internationalization support? (Y/n) y //是否使用国际化

? (16/19) Please choose the native language of the application (Use arrow keys) //选择本地化语言
  Belorussian
  Bengali
  Catalan
> Chinese (Simplified)
  Chinese (Traditional)
  Czech
  Danish
(Move up and down to reveal more choices)

? (17/19) Please choose additional languages to install //选择其余支持语言
 ( ) Czech
 ( ) Danish
 ( ) Dutch
>(*) English
 ( ) Estonian
 ( ) Farsi
 ( ) French
(Move up and down to reveal more choices)

测试选择

? (18/19) Besides JUnit and Jest, which testing frameworks would you like to use? //应用程序选择测试选项
 ( ) Gatling
 ( ) Cucumber
>(*) Protractor

其他

? (19/19) Would you like to install other generators from the JHipster Marketplace? (y/N) n //是否需要去JHipster商城安装第三方插件模块

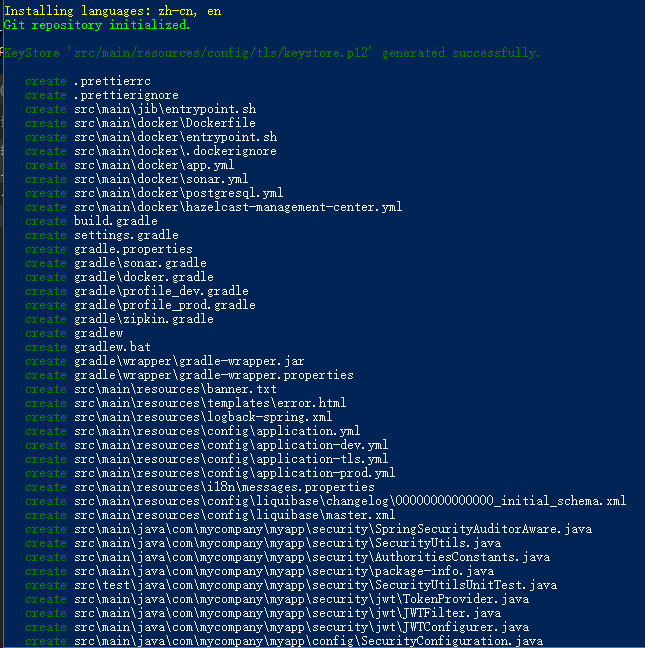

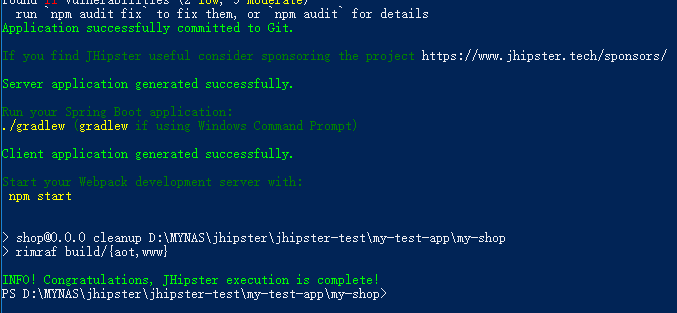

生成成功

运行

执行./gradlew,相当于执行./gradlew bootRun -Pdev

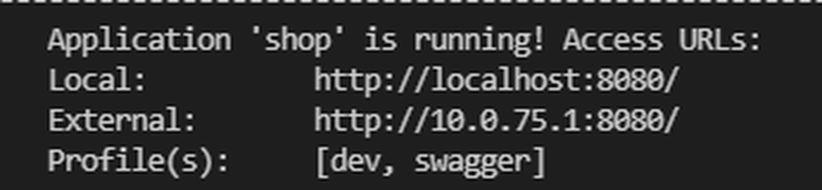

该应用程序已经成功启动,可以在 http://localhost:8080 上查看。

测试

服务端测试

运行./gradlew test,如果运行成功,将会看到BUILD SUCCESSFUL

客户端测试

运行npm test或运行yarn test

e2e测试,需确保服务端正在运行,然后在运行npm e2eyarn e2e

热启动

在一个终端中,通过运行./gradlew以dev模式启动服务器,在另一个终端中,通过运行yarn startnpm start启动客户端开发服务器。

当您在服务器端进行任何更改时,只需运行./gradlew compileJava,或者如果您使用IDE,则单击compile按钮。

提交Git(可选择行执行)

> git init
> git add --all
> git commit -am "generated myshop application"
